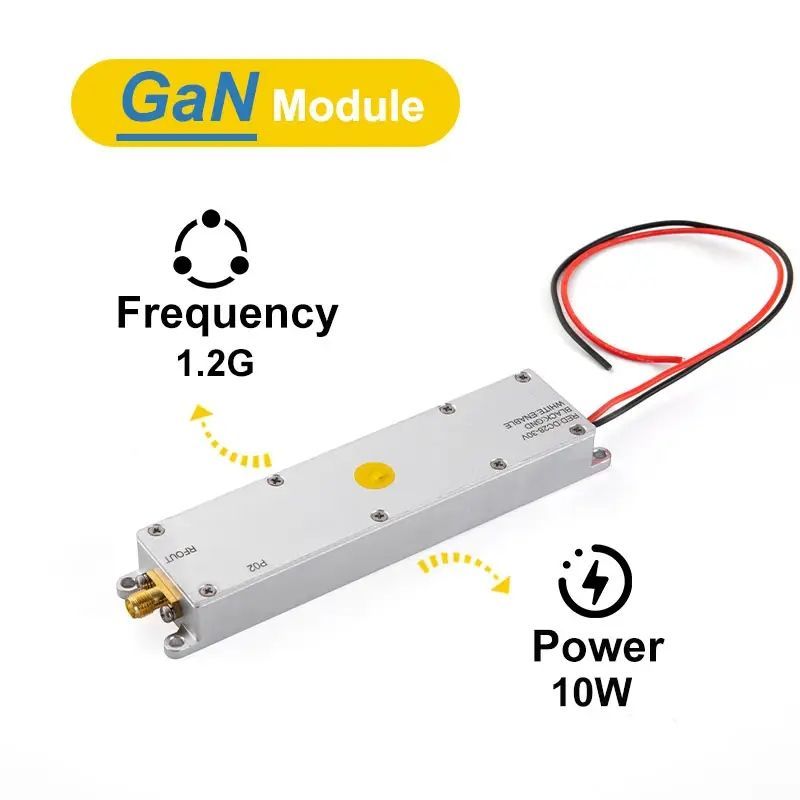

1.2g 10W GaN Technology Anti Drone Module 1170-1280MHz Frequency

Brand Name : Pdfy

Model NO. : PF-AM080

Condition : New

Type : RF Power Amplifier Module

Support Network : All

Information Content : All

Product Name : RF GaN Power Amplifier Module

Frequency : 1170-1280MHz

Output Power : 10W

Gain : 45 dBm

Voltage : 24-28V

Product Weight : 136kg

Intra-Band Fluctuations : ≤2.5 (Peak-to-Peak Value)

in-Band Group Delay : ≤1us

Input Voltage Standing Wave Ratio : ≤1.35

Transport Package : Carton

Specification : 29.7*131*15.5mm

Trademark : No

Origin : Guangdong, China

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, PayPal

Contact Now

1.2g 10W GaN Anti-Module for Anti Drone System PA Module

1.2g 10W GaN Technology Anti Drone Module 1170-1280MHz Frequency
Product Parameters
1.2GHz anti drone module, GaN Technology, 10W.
Power and frequency support Cusyomization.
GaN transistors are more efficient.
The efficiency minus the driver (heating power consumption) is about 55-65%.

In fact, the working efficiency over 2.4G is 52%, and the working efficiency below 2.4G is 55%.

However, the working efficiency of LDMOS modules is only 45%-55%, so GaN modules consume less power and generate heat slowly.
Anti drone module, anti drone system, drone detector antenna.

The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.
Brand Name
PDFY
Working frequency
1.2G
Saturated output power
40±1dBm
Gain
42±2dB
In-band fluctuation
≤2.0dB

Out-of-band spurious
9kHz~1GHz:≤-36dBm/30kHz
1GHz~12.75GHz:≤-30dBm/30KHz
Input VSWR
≤1.5
Gain temperature stability
≤±1.5dB
Working voltage
DC+28V
Working current
≤1.8A
Power supply monitoring interface
Power supply and power amplifier enabling: through the heart capacitor
Output RF port
SMA
Dimensions
29.7*131*15.5mm(excluding SMA)
Working temperature
-20~+55ºC

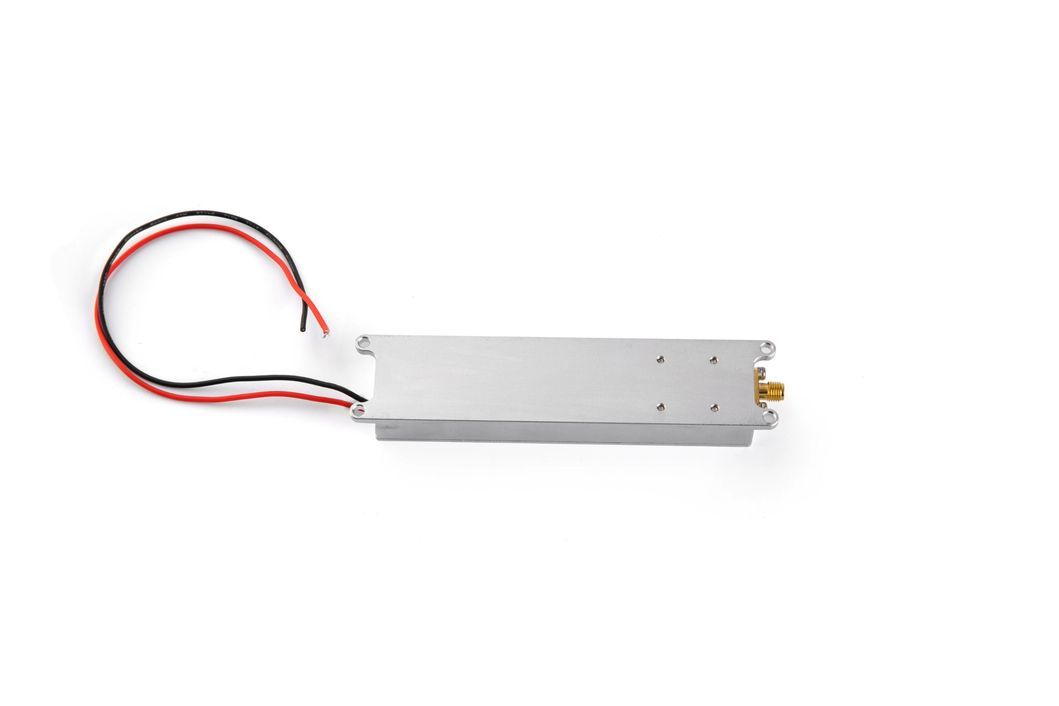

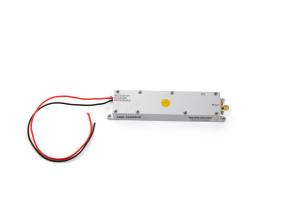

Detailed Photos

1.2g 10W GaN Technology Anti Drone Module 1170-1280MHz Frequency
1.2g 10W GaN Technology Anti Drone Module 1170-1280MHz Frequency1.2g 10W GaN Technology Anti Drone Module 1170-1280MHz Frequency1.2g 10W GaN Technology Anti Drone Module 1170-1280MHz Frequency
Packaging & Shipping
1.2g 10W GaN Technology Anti Drone Module 1170-1280MHz Frequency

1.2g 10W GaN Technology Anti Drone Module 1170-1280MHz Frequency

Company Profile

Welcome to Shenzhen Padi Flying Intelligent Technology Co., Ltd: Your Partner in Drone Security. We are a leading provider of comprehensive solutions in the anti-drone industry, dedicated to safeguarding airspace and critical infrastructure from unauthorized drone activity.

Why Choose Us:

Experience: With years of experience in the anti-drone industry, we have a proven track record of success.

Expertise: Our team consists of industry experts who are passionate about drone security and dedicated to providing the best solutions.

Trust: We have earned the trust of our clients through our commitment to quality, innovation, and exceptional customer service.

Choose Padi Flying Intelligent Tech Co., Ltd, we believe in a world where drone technology is used responsibly and safely. We invite you to explore our solutions and join us in

our mission to secure the skies
1.2g 10W GaN Technology Anti Drone Module 1170-1280MHz Frequency
1.2g 10W GaN Technology Anti Drone Module 1170-1280MHz Frequency1.2g 10W GaN Technology Anti Drone Module 1170-1280MHz Frequency

FAQ

1.Question : Why choose us ?

Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .

2.Question : What is the minimum order quantity(MOQ) ?
Answer : No quantity limited , sample order or small order is acceptable.

3.Question : Could you offer wholesale price ?
Answer : Supportive,and wholesale price is better.

4.Question : How long is your delivery time ?
Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .

5.Question : What is your product quality ?
Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products meet your requirements .

6.Question : Can you print my own logo on the products ?
Answer : Yes , logo,packing design and other oem services are available .
We will prepare artwork for visual confirmation , then sample confirm finally bulk production .

7.Question : What's the payment terms ?
Answer : T/T , Western union , Paypal , Alipay and so on.
