433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas

Brand Name : Pdfy

Model NO. : PF-AM088

Condition : New

Type : Drone Uav Protect Module

Support Network : All

Information Content : All

Product Name : Anti Drone Module

Frequency : 433MHz(Support Customization)

Output Power : 40W, 50W

Gain : ≤3.4A

Voltage : 24-32V

Product Weight : 136g

Frequency Range : 428MHz-438MHz(Support Customization)

Transport Package : Carton

Specification : 38*112*19.5mm

Trademark : No

Origin : Guangdong, China

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, PayPal

Contact Now

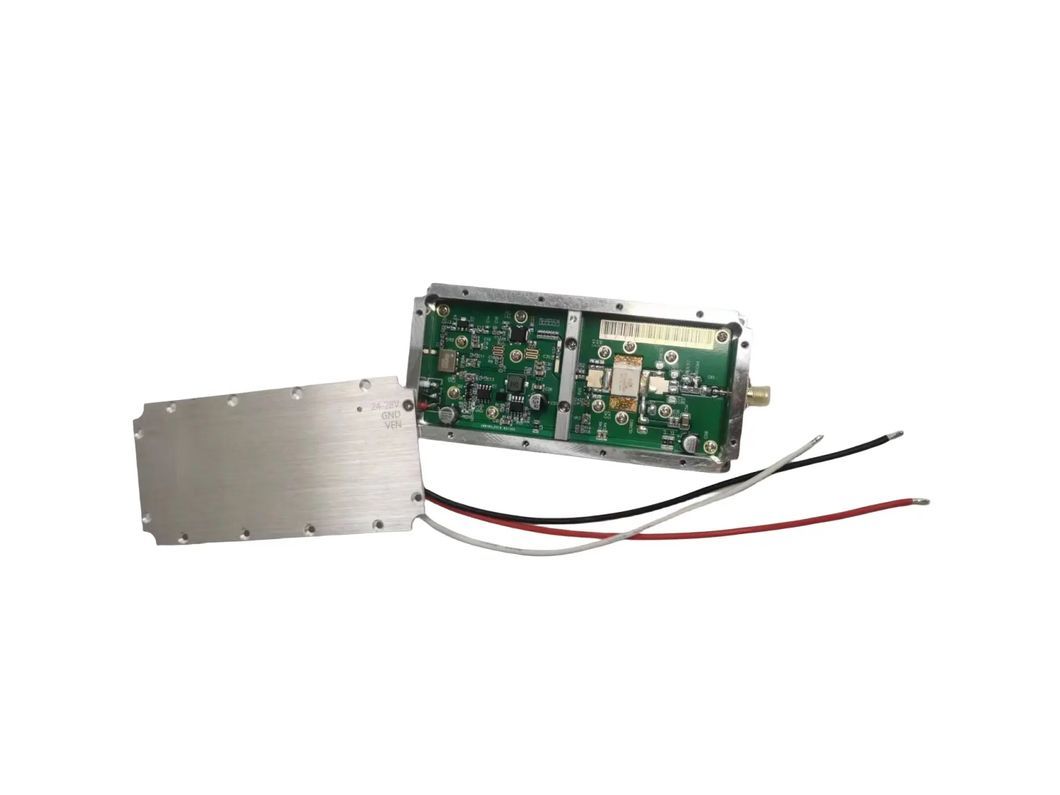

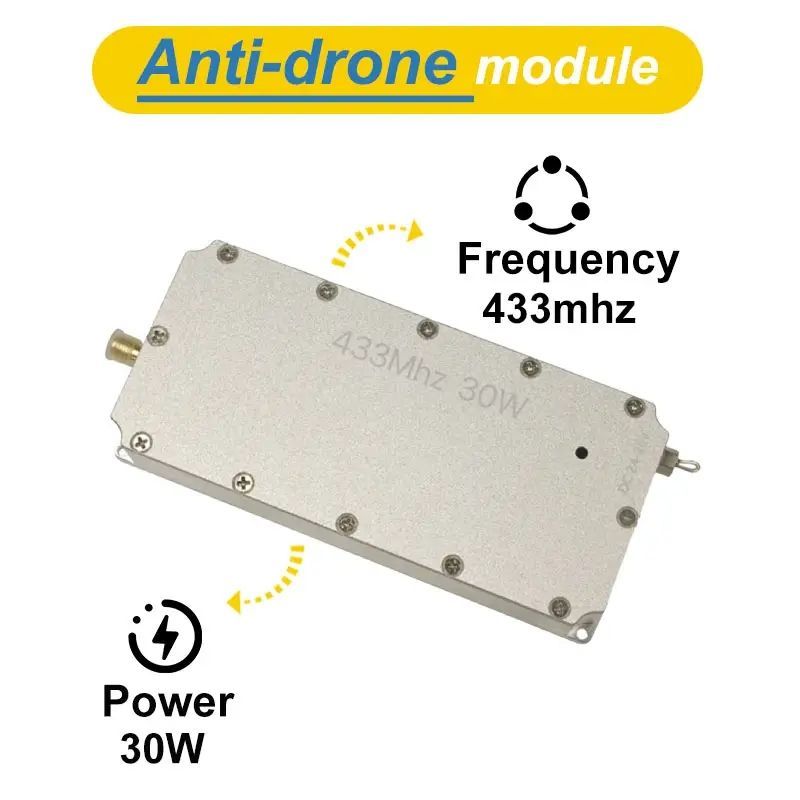

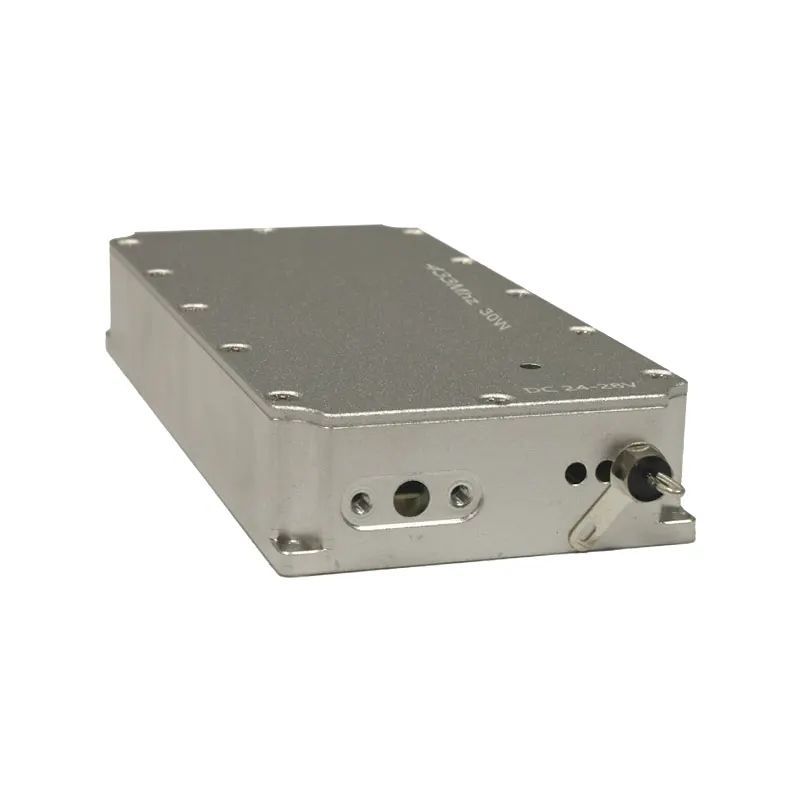

433MHz 40W 50W High Power RF Anti Drone Modules Incorporate State of The Art GaN for Autel Mavic 3 Fpv C-Uas

433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas
Product Parameters
GaN transistors are more efficient.
The efficiency minus the driver (heating power consumption) is about 55-65%.
In fact, the working efficiency over 2.4G is 52%, and the working efficiency below 2.4G is 55%.
However, the working efficiency of LDMOS modules is only 45%-55%, so GaN modules consume less power and generate heat slowly.
--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

--We provide broadband and band specific, high power RF and microwave amplifier solutions to OEM
Brand Name
PDFY
Working frequency
433MHz
Saturated output power
45±1dBm
Gain
42±2dB
In-band fluctuation
≤2.0dB

Out-of-band spurious
9kHz~1GHz:≤-36dBm/30kHz
1GHz~12.75GHz:≤-30dBm/30KHz
Input VSWR
≤1.5
Gain temperature stability
≤±1.5dB
Working voltage
DC+28V
Power supply monitoring interface
Power supply and power amplifier enabling: through the heart capacitor
Output RF port
SMA
Dimensions
38*112*19.5mm
Working temperature
-20~+55ºC
433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas
Packaging & Shipping

433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas

433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas

Company Profile

Welcome to Shenzhen Padi Flying Intelligent Technology Co., Ltd: Your Partner in Drone Security. We are a leading provider of comprehensive solutions in the anti-drone industry, dedicated to safeguarding airspace and critical infrastructure from unauthorized drone activity.

Why Choose Us:

Experience: With years of experience in the anti-drone industry, we have a proven track record of success.

Expertise: Our team consists of industry experts who are passionate about drone security and dedicated to providing the best solutions.

Trust: We have earned the trust of our clients through our commitment to quality, innovation, and exceptional customer service.

Choose Padi Flying Intelligent Tech Co., Ltd, we believe in a world where drone technology is used responsibly and safely. We invite you to explore our solutions and join us in

our mission to secure the skies
433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas
433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas433MHz 40W 50W High Power Drone Jamming Module For Autel Mavic 3 Fpv C-Uas

FAQ

1.Question : Why choose us ?

Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .

2.Question : What is the minimum order quantity(MOQ) ?
Answer : No quantity limited , sample order or small order is acceptable.

3.Question : Could you offer wholesale price ?
Answer : Supportive,and wholesale price is better.

4.Question : How long is your delivery time ?
Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .

5.Question : What is your product quality ?
Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products meet your requirements .

6.Question : Can you print my own logo on the products ?
Answer : Yes , logo,packing design and other oem services are available .
We will prepare artwork for visual confirmation , then sample confirm finally bulk production .

7.Question : What's the payment terms ?
Answer : T/T , Western union , Paypal , Alipay and so on.
