5150-5250m 40W GaN Anti-Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module

Name: 51505250m 40W GaN AntiModule for Anti Drone System Autel Anti Fpv CUas Mavic 3 Autel Fpv Poland RF Module PA Module
Brand: Pdfy
Price: 1 USD

Quality 5150-5250m 40W GaN Anti-Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module wholesale

Model NO. : PF-AM095

Condition : New

Type : Drone Uav Protect Module

Support Network : All

Information Content : All

Brand Name : Pdfy

Product Name : RF GaN Power Amplifier Module

Frequency : 5150-5250MHz

Output Power : 40W

Gain : 47dBm

Voltage : 24-32V

Product Weight : 136g

Intra-Band Fluctuations : ≤2.5 (Peak-to-Peak Value)

in-Band Group Delay : ≤1us

Input Voltage Standing Wave Ratio : ≤1.35

Transport Package : Carton

Specification : 38*112*19.5mm

Trademark : No

Origin : Guangdong, China

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, PayPal

Contact Now

5150-5250m 40W GaN Anti-Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module

--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.

--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.

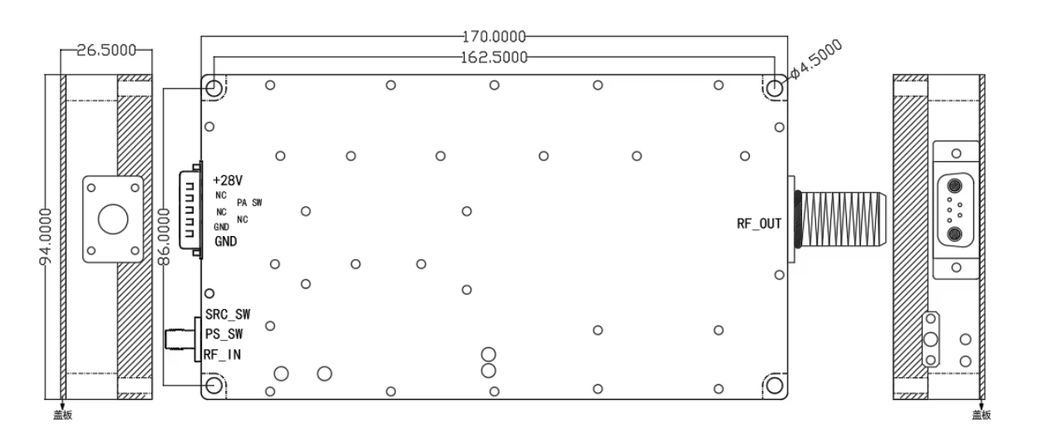

--This document stipulates the radio frequency and monitoring technical indicators of the 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

--This document applies to all aspects of product design, verification, production and quality inspection of the 50W power amplifier module.

Brand Name	PDFY
Working frequency	5150-5250MHz
Power	40W
Working Voltage	30V
Max Output Power	47dBm
Working Efficiency	≥60%
Gain	47dbi
Passband Riplpe	≤2dB
Power supply requirements	≥3.7A
Size	37.311219.5mm
Weight	136 g
Operating Temperature	-10~+55ºC
RF Connector	SMA
Connect line red	DC24-32V
Connect line black	GND
Connect line white	ENABLE

5150-5250m 40W GaN Anti-Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module

Welcome to Shenzhen Padi Flying Intelligent Technology Co., Ltd: Your Partner in Drone Security. We are a leading provider of comprehensive solutions in the anti-drone industry, dedicated to safeguarding airspace and critical infrastructure from unauthorized drone activity.

Why Choose Us:

Experience: With years of experience in the anti-drone industry, we have a proven track record of success.

Expertise: Our team consists of industry experts who are passionate about drone security and dedicated to providing the best solutions.

Trust: We have earned the trust of our clients through our commitment to quality, innovation, and exceptional customer service.

Choose Padi Flying Intelligent Tech Co., Ltd, we believe in a world where drone technology is used responsibly and safely. We invite you to explore our solutions and join us in

our mission to secure the skies
5150-5250m 40W GaN Anti-Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module

1.Question : Why choose us ?

Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .

2.Question : What is the minimum order quantity(MOQ) ?
Answer : No quantity limited , sample order or small order is acceptable.

3.Question : Could you offer wholesale price ?
Answer : Supportive,and wholesale price is better.

4.Question : How long is your delivery time ?
Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .

5.Question : What is your product quality ?
Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products meet your requirements .

6.Question : Can you print my own logo on the products ?
Answer : Yes , logo,packing design and other oem services are available .
We will prepare artwork for visual confirmation , then sample confirm finally bulk production .

7.Question : What's the payment terms ?
Answer : T/T , Western union , Paypal , Alipay and so on.

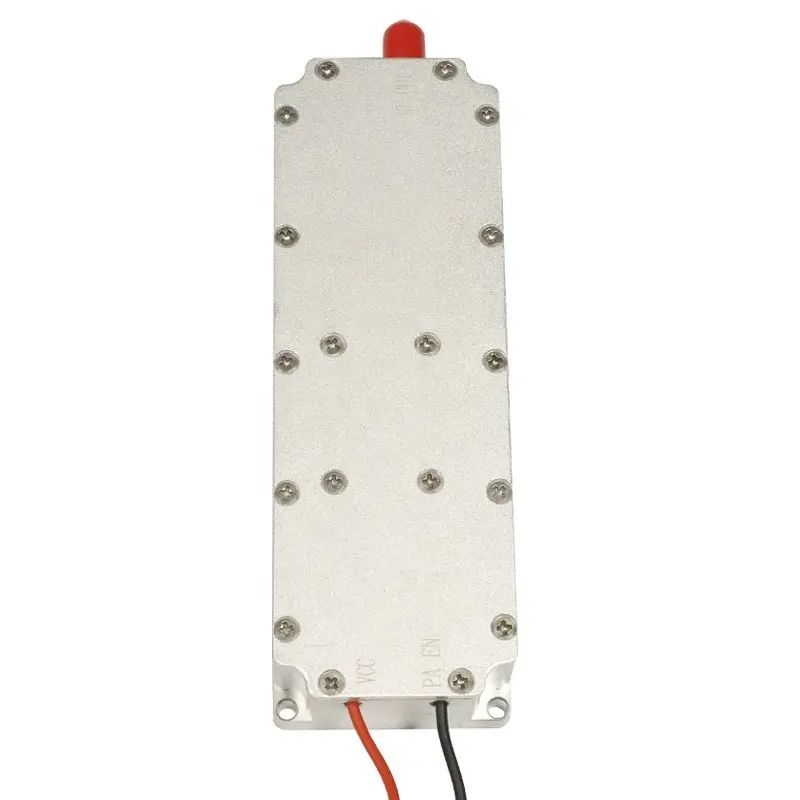

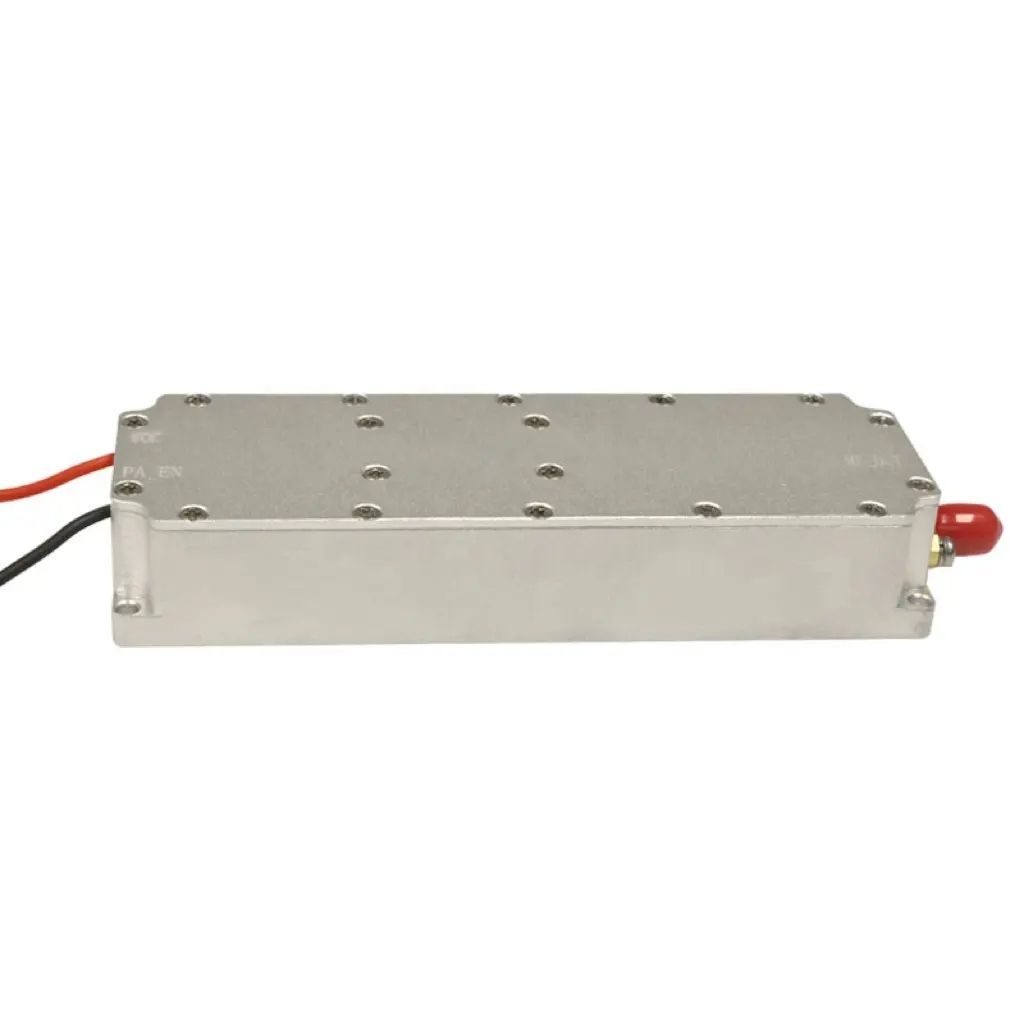

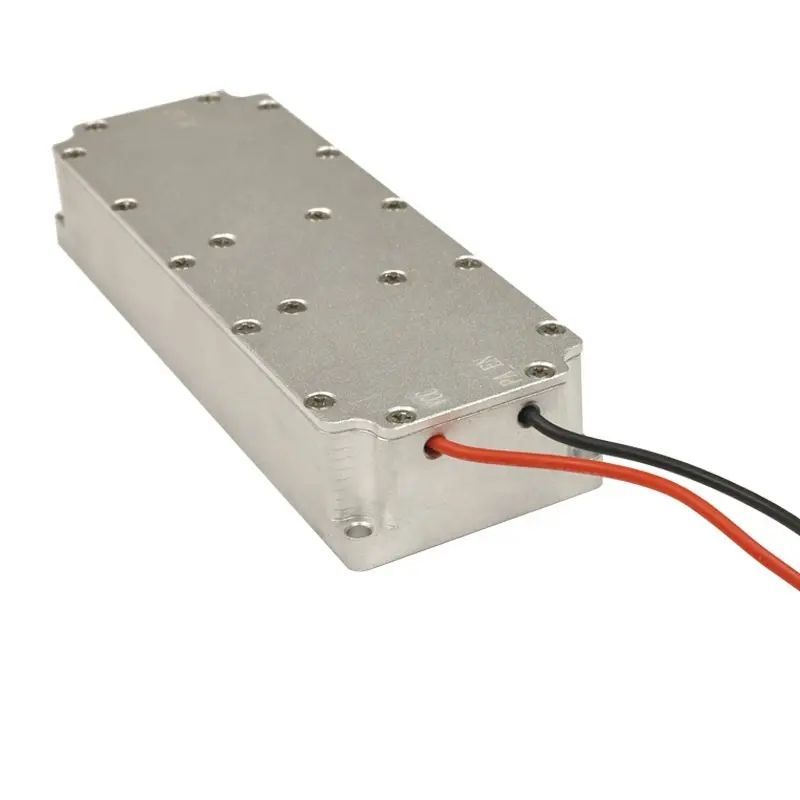

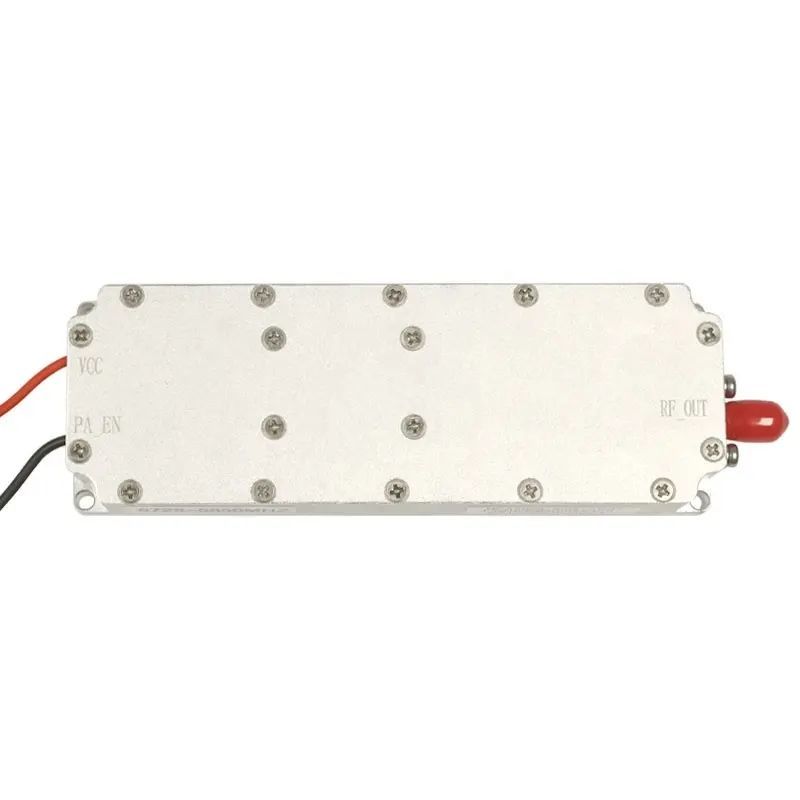

5150-5250m 40W GaN Anti-Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module Images
